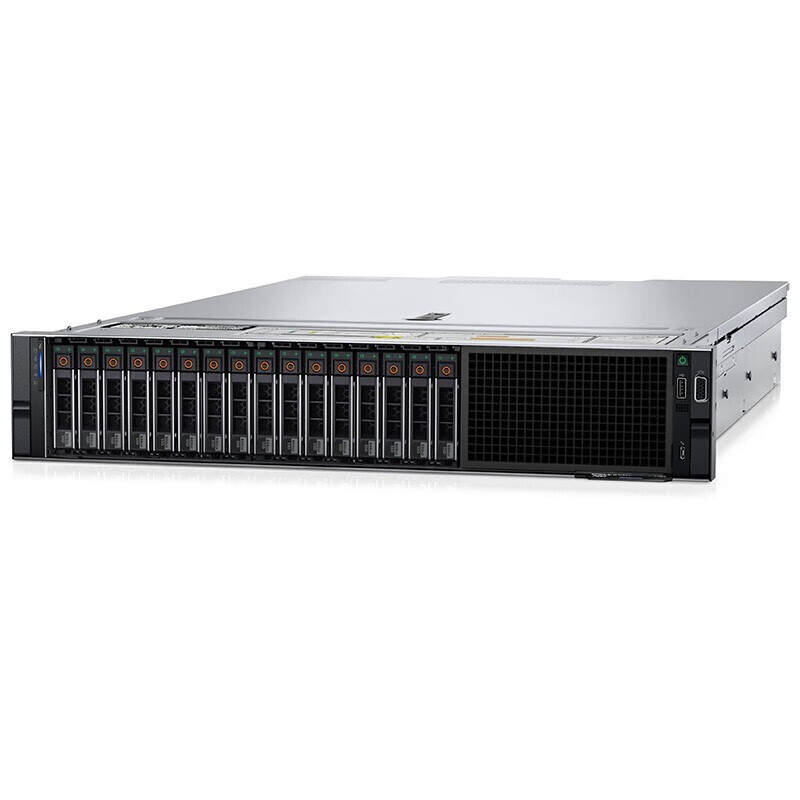

| Feature | Technical Specifications |
|---|---|
| Processor | Up to two 3rd Generation Intel Xeon Scalable processors, with up to 40 cores per processor |
| Memory | • 32 DDR4 DIMM slots, supports RDIMM 2 TB max or LRDIMM 8 TB max, speeds up to 3200 MT/s • Up to 16 Intel Persistent Memory 200 series (BPS) slots, 8 TB max • Supports registered ECC DDR4 DIMMs only |
| Storage controllers | • Internal controllers: PERC H745, HBA355I, S150, H345, H755, H755N • Boot Optimized Storage Subsystem (BOSS-S2): HW RAID 2 x M.2 SSDs 240 GB or 480 GB • External PERC (RAID): PERC H840, HBA355E |
| Drive Bays | Front bays: Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB; Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.84 TB Rear bays: Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB |
| Power Supplies | 800 W Platinum AC / 1100 W Titanium AC / 1400 W Platinum AC / 2400 W Platinum AC |
| Cooling & Fans | Air cooling, optional processor liquid cooling. Up to six hot plug fans (Standard/High performance) |
| Dimensions | Height: 86.8 mm (3.41"); Width: 482 mm (18.97"); Depth: 758.3 mm (29.85") |
| Form Factor | 2U rack server |
| Embedded Management | iDRAC9, iDRAC Service Module, iDRAC Direct, Quick Sync 2 wireless module |
| GPU Options | Up to two double-width 300 W, or four single-width 150 W, or six single-width 75 W accelerators |
| Ports | Front: USB 2.0, VGA, iDRAC Direct; Rear: USB 2.0/3.0, Serial, RJ-45, VGA; Internal: 1 x USB 3.0 |
As a leading integrated IT solutions provider, we combine cutting-edge in-house manufacturing, dedicated R&D facilities, and a robust global distribution network to deliver comprehensive end-to-end infrastructure services. With a team of over 300 highly skilled professionals, including more than 150 certified engineers, we bring 15 years of proven expertise in designing, deploying, and maintaining mission-critical IT environments for enterprises worldwide.
Our vertically integrated approach ensures seamless quality control from component sourcing to final implementation. As authorized partners for major brands, we provide: Computing servers, Network storage, Network switches, CPU, RAM, Hard Drives, and other essential accessories.
