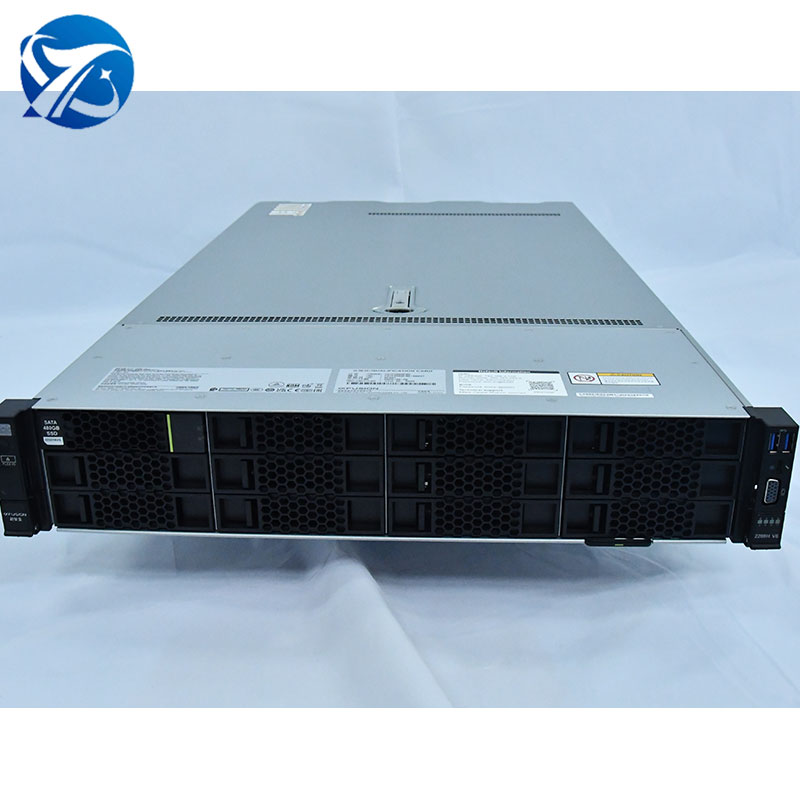

| Server Model | FusionServer 2288H V6 |
| Form Factor | 2U rack server |
| Processors | One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), TDP up to 270 W |
| Local Storage |
Supports various drive configurations and hot swappable: • 8-31 x 2.5-inch SAS/SATA/SSD drives • 12-20 x 3.5-inch SAS/SATA drives • 4/8/16/24 NVMe SSDs • 45 x 2.5-inch drives or 34 full-NVMe SSDs • Dual M.2 SSDs |
| RAID Support | Supports RAID 0, 1, 10, 1E, 5, 50, 6, or 60; optional supercapacitor for cache data power failure protection; RAID level migration, drive roaming, and self-diagnosis. |
| Network | Multiple network expansion; OCP 3.0 NICs supported; FlexIO card slots available; Hot swappable function supported. |
| PCIe Expansion | Maximum of fourteen PCIe 4.0 slots (including one dedicated RAID card slot, two FlexIO OCP 3.0 slots, and eleven standard PCIe 4.0 slots). |
| Management | iBMC chip with dedicated GE management port; supports Redfish, SNMP, IPMI 2.0, and HTML5/VNC KVM; Optional FusionDirector management software for intelligent lifecycle management. |
| Operating Systems | Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, etc. |
| Power Supply | Two hot-swappable PSUs in 1+1 redundancy (900W/1200W/1500W/2000W/3000W options, AC/HVDC/DC support). |
| Dimensions | 86.1 mm x 447 mm x 790 mm (3.39 in. x 17.60 in. x 31.10 in.) |
