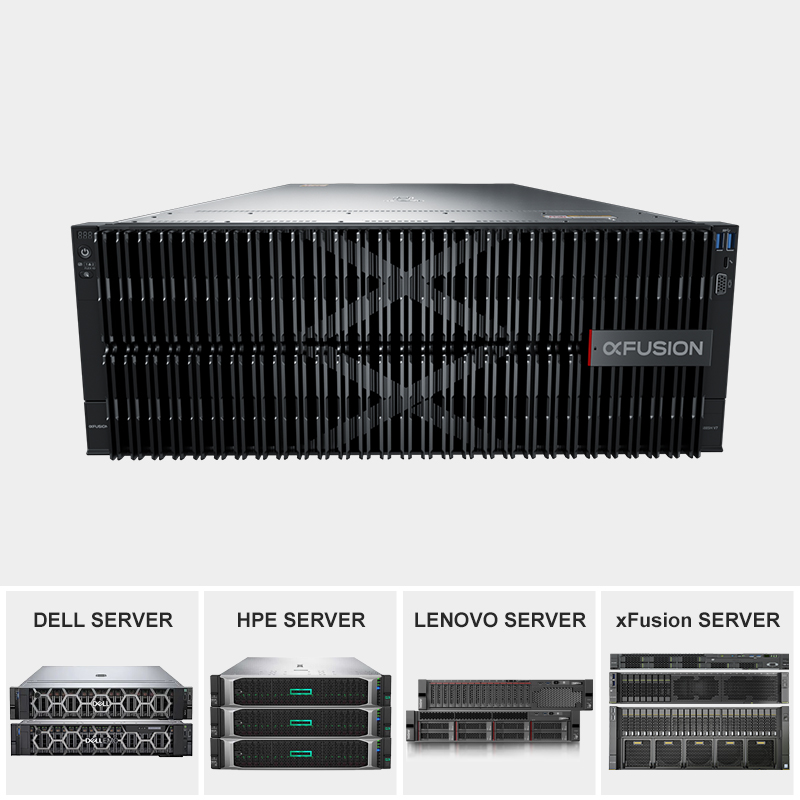

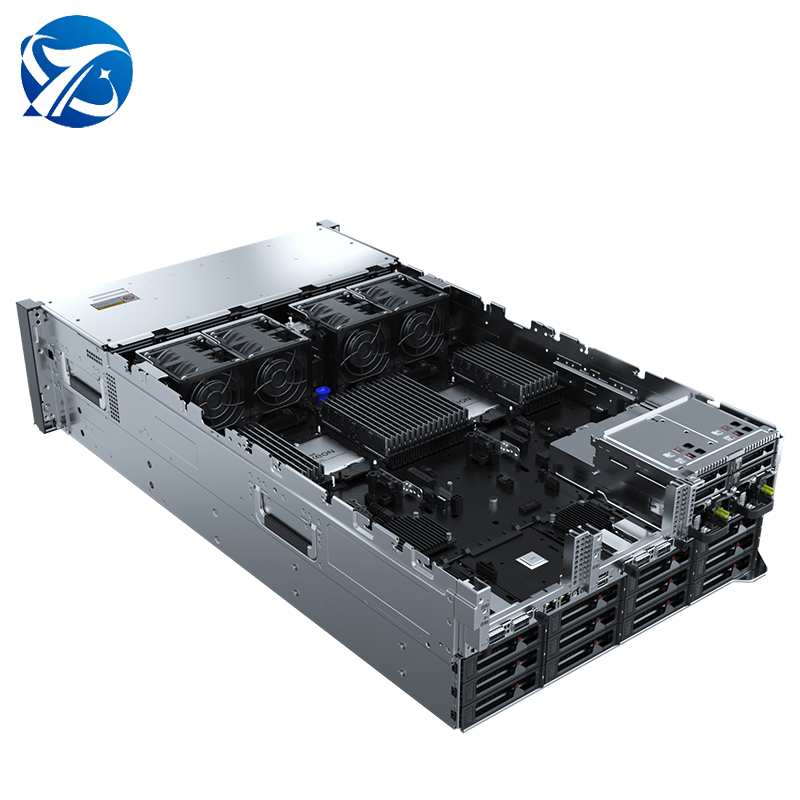

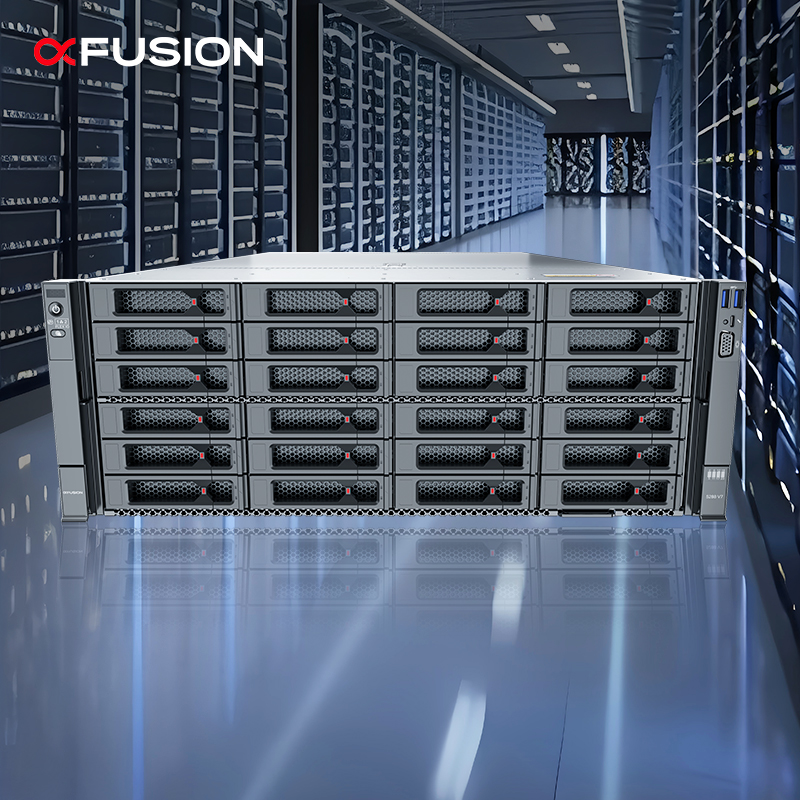

5288 V7 is a new-generation 4U 2-socket rack server designed with a wide range of uses for Internet, IDC (Internet Data Center), cloud computing, enterprise market, and telecom service applications.

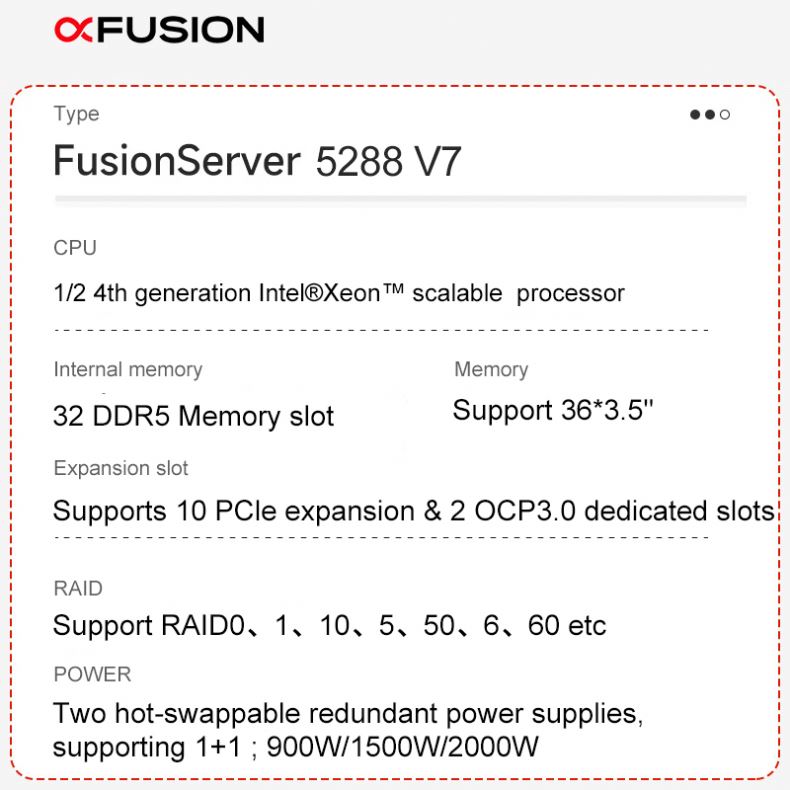

| Hardware Specification Details | |
|---|---|
| Server Model | FusionServer 5288 V7 |
| Form Factor | 4U Rack Server |
| Processors | 1/2 4th Generation Intel® Xeon® Scalable Processor (Sapphire Rapids), single processor supports up to 350W |
| Memory | 32 DDR5 memory slots are flexible and optional, up to 4800MT/s |
| Local Storage |
Support a variety of different hard disk configurations, hard disk supports hot swap: • Can be configured with four 2.5-inch SAS/SATA/SSD hard drives • Can be configured with 24-44 3.5-inch SAS/SATA hard drives • Can be configured with 8 NVMe SSD disks • Can be configured with E1.s or E3.s hard drives* Support Flash storage: • Dual M.2 SSDs |

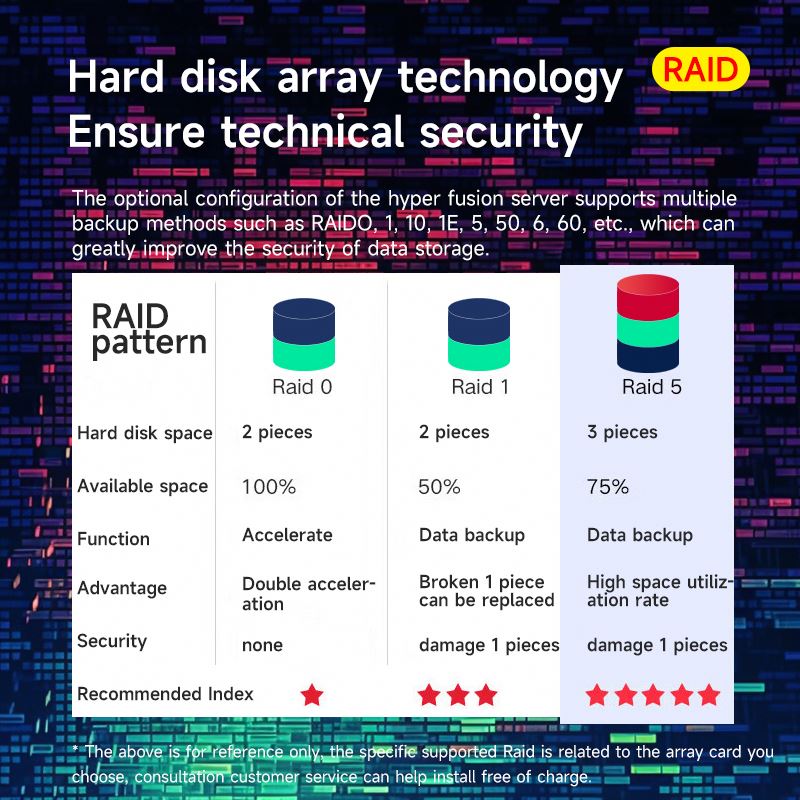

| RAID Support | Optional support RAID 0, 1, 10, 1E, 5, 50, 6, 60, etc., support Cache super capacitor protection, provide RAID level migration, disk roaming, self-diagnosis, Web remote setting and other functions |
| Network Connection | Support multiple network expansion capabilities. Support OCP 3.0 network card - 2 FLEX IO card slots support 2 OCP 3.0 network cards respectively, support on-demand configuration; support hot swap, support PCIe 5.0 |
| GPU Accelerator Card | Supports GPU accelerator card configurations |
| Power Supply Units |
It can be configured with 2 redundant hot-swappable power supplies, supporting 1+1 redundancy, with optional specifications as follows: • 900W AC platinum/titanium power supply (input: 100V AC~240V AC or 192V DC~288V DC) • 1500W AC Platinum Power Supply: 1000W (input: 100V AC ~ 127V AC), 1500W (input: 200V AC~240V AC or 192V DC~288V DC) • 1500W 380V high voltage DC power supply (input: 260V DC~400V DC) • 1200W -48V ~ -60V DC power supply (input: -38.4V DC ~ -72V DC) • 3000W AC titanium power supply: 2500W (input: 200V AC ~ 220V AC), 2900W (input: 220V AC ~ 230V AC), 3000W (input: 230V AC ~ 240V AC) • 2000W AC Platinum Power Supply: 1800W (input: 200V AC~220V AC or 192V DC~200V DC), 2000W (input: 220V AC ~ 240V AC or 200V DC ~ 288V DC) |
